Brand WELLPACK
Product origin China
Delivery time 15-45 days

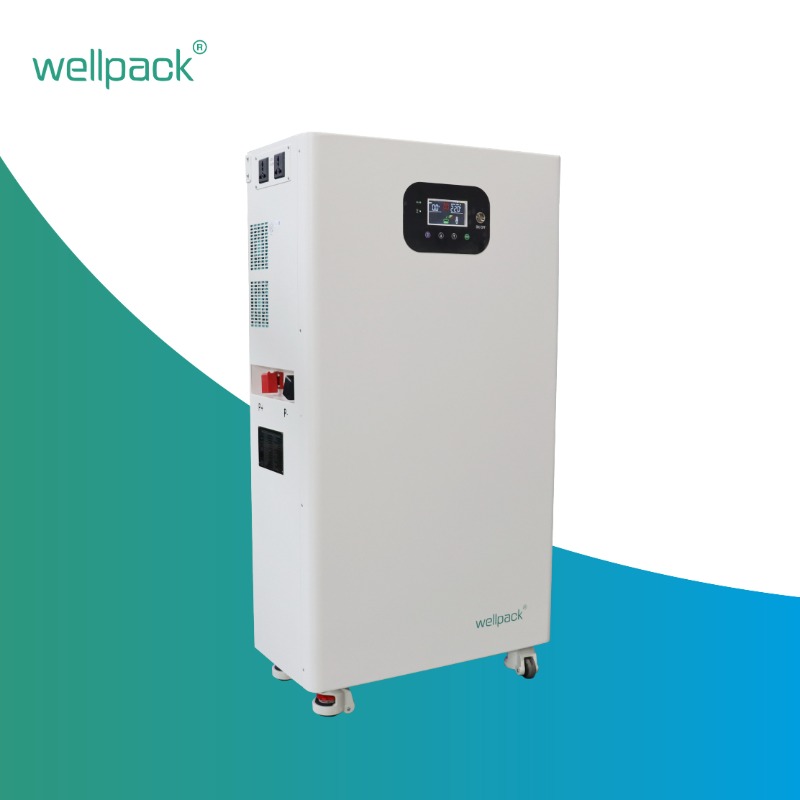

The WPH10I-02 all-in-one storage system integrates a 10.54kWh LiFePO₄ battery and 6kW pure sine wave inverter in a compact, wheeled unit for effortless mobility and plug‑and‑play installation. Grade‑A cells with intelligent BMS deliver 8‑layer protection (overcharge, over‑discharge, short circuit, temperature extremes, etc.).
This all-in-one energy storage system integrates battery and inverter in a compact unit. It requires no on-site assembly, features simple plug-and-play wiring. With built-in casters for easy mobility and a small footprint, it’s ideally suited for home use.
The product uses brand-new grade-A LiFePO₄ battery cells and features an intelligent control system (BMS) with built-in monitoring chips. It provides stable continuous power output and has multiple protections against overcharge, over-discharge, overcurrent, short circuit, low voltage, overvoltage, and extreme high/low temperatures, comprehensively ensuring electricity safety.
Each unit equipped with dual RS485 ports for host connection, allowing real-time PACK status checks for effortless maintenance.
Modular design with expansion-ready interfaces for quick, easy capacity upgrades to meet diverse home power needs.

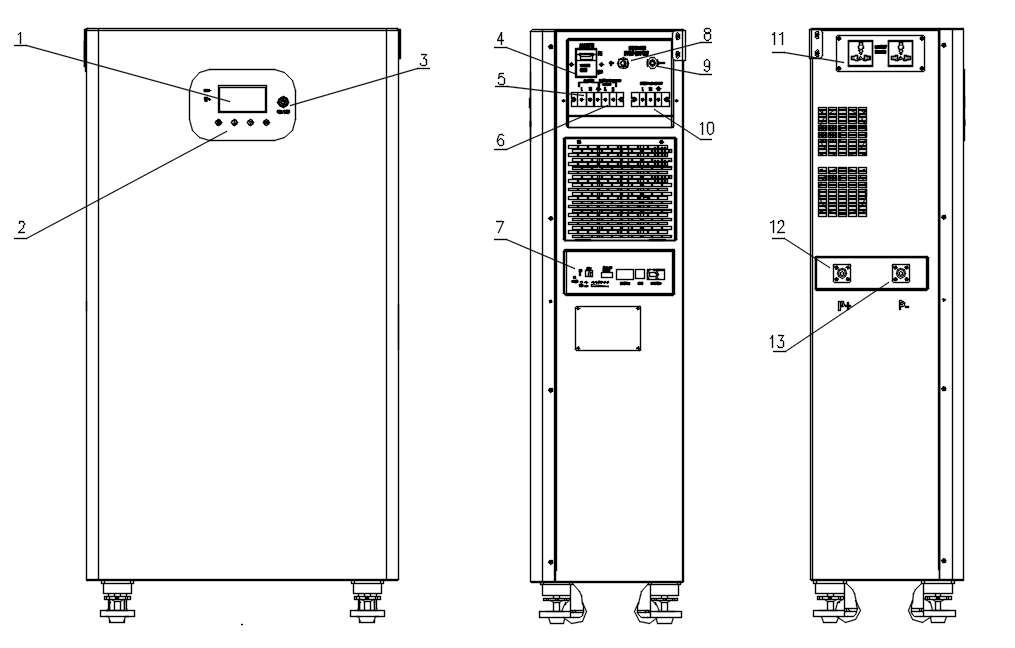

| 1 | Display screen | 6 | Unlimited Load Output (PE/L/N) | 11 | AC output (MAX: 2200W) |
| 2 | Inverter function button | 7 | Communication ports | 12 | Battery output (+) |
| 3 | Power on/off | 8 | PV input (+) | 13 | Battery output (-) |
| 4 | Grid input breaker | 9 | PV input (-) | ||
| 5 | Grid input (L/N/PE) | 10 | Inverter AC output (MAX:6000W) |
| Parameter | Value |
|---|---|
| Rated energy | 51.2V~206Ah(10.54KWh) |
| Nominal voltage | 51.2V |
| Max. continuous output current | 150A |
| Charging limited voltage | 58.4V |
| Cycle life | ≥6000 times |
| Battery material | LiFePO4 |
| Parameter | Value |
|---|---|
| AC voltage output | 220/230/240VAC (L/N/PE single phase) |
| Inverter output power | 6KW |
| Waveform | Pure sine wave |
| Rated frequency | 50HZ/60HZ |
| Grid AC input voltage | 90~280VAC |
| Max grid charging current | 100A |
| PV max input power | 6000W |
| PV input voltage range | 100~450VDC |
| Optimal Vmp working range | 300~400VDC |
| Max rated PV input current | 25A |
| Parameter | Value |
|---|---|
| Dimensions | L530*W260*H1010mm |
| Weight | Around 111KG |
| Operation conditions | |
| Relative humidity | 20 ~ 95% (No condensation) |
| Storage temperature | -20℃~45℃ |
| Storage period | 12 months@20℃~25℃ |
