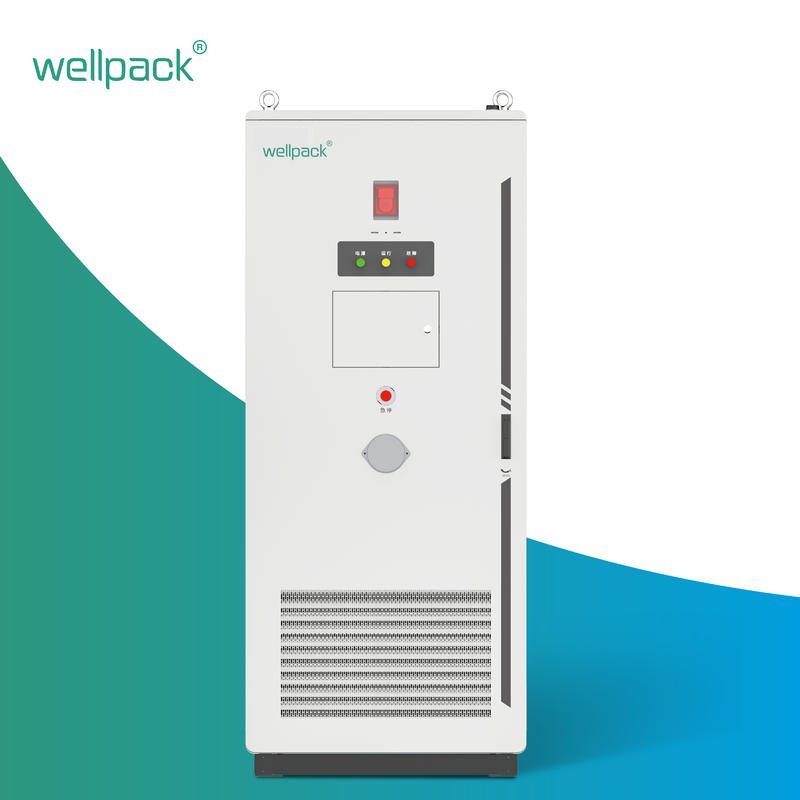

WP-EIB 100kW/215kWh Air-cooled Energy Storage Integrated Cabinet

Brand WELLPACK

Product origin China

Delivery time 15-45 days

The WP-EIB series energy storage integrated cabinets are meticulously developed by us, which is experienced in power electronics, automation, IoT, and AI technologies. The WP-EIB are on grid energy storage products designed for C&I, EV charging station, public buildings and so on. They have functions like peak shaving, peak & frequency regulation, transformer expansion, and smoothing renewable energy fluctuations, providing users with safe, reliable, economical, and efficient green electricity.

Product Features

Extreme Safety

Self-developed BMS, EMS, and cloud platform to achieve three-level electrical protection of “Pack – Cluster – Cabinet”.
Comprehensive fire detection and multiple fire protection. The entire cabinet, detected by combustible gas, smoke and temperature sensor, is equipped with perfluorohexanone fire extinguishing system.
AI data diagnosis provides early warnings based on the trend change rate of operation data.

Smart Maintenance

Providing the function of demand control, anti-backflow and transformer overload protection to make the on-grid operating safely.
Providing all-time cloud monitoring, remote configuration, and OTA to keep the system in the best condition.
Automatically generate daily/ monthly operation reports.

Intelligent & Efficient Operation

Designed with high energy density to save more space.
The annual availability rate is ≥95%, and the comprehensive cycle efficiency is ≥85%.
The cell life is up to 10 years and 6000 cycles.

Flexible Deployment

Support to be installed by hoisting and forklift, and available for side-by-side deployment.

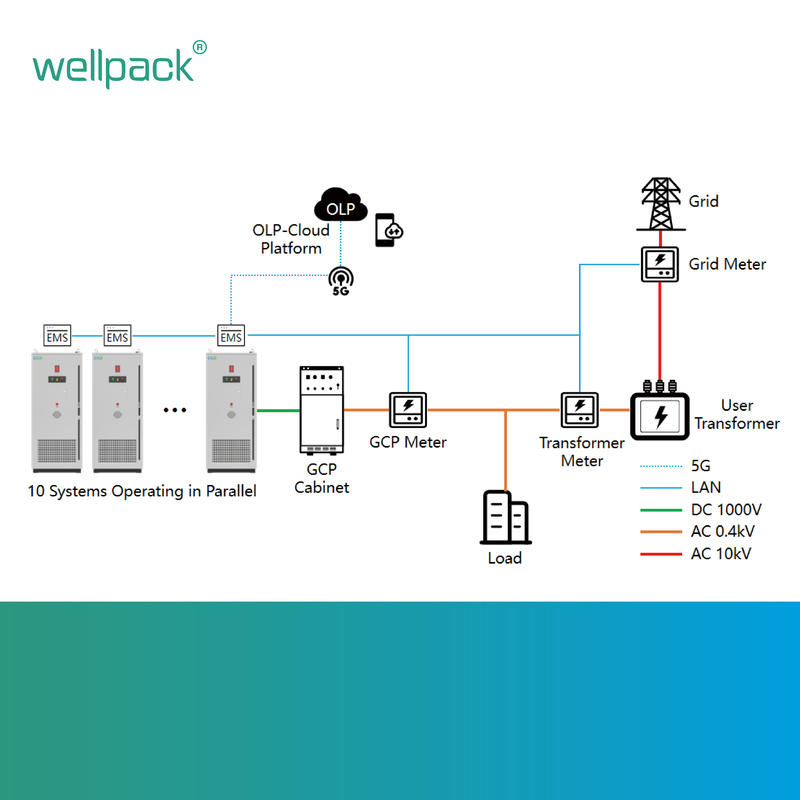

Flexible capacity expansion, up to 1MW/2.15MWh, with 10 systems operating in parallel.
Pre-installation and commissioning in the factory, plug-and-play on-site.

Product Parameters

Model	WP-EIB-V832_E261_P125
Battery System	Cell Type	LFP
	Cell Parameter	3.2V/314Ah
	Cell Configuration	1P260S
	Rated Energy	261kWh
	Rated Voltage	832V
	Voltage Range	728 ~ 923V
	Rated Current	157A
	Max. Current	200A
On-grid	Rated Power	125kW
	Rated Voltage	3L/N/PE; 230/400V
	Max. Current	200A
	Frequence	50/60Hz
	Power Factor	1 leading ~ 1 lagging
System Parameters	Harmonic	<3% @ Rated Power
	Thermal Management	Water Chiller, Dehumidifier
	Fire Supression System	Combined detector (CO/VOC/Heat/Smoke), Perfluorohexanone, Water Sprinkler System
	Communication	LAN/4G

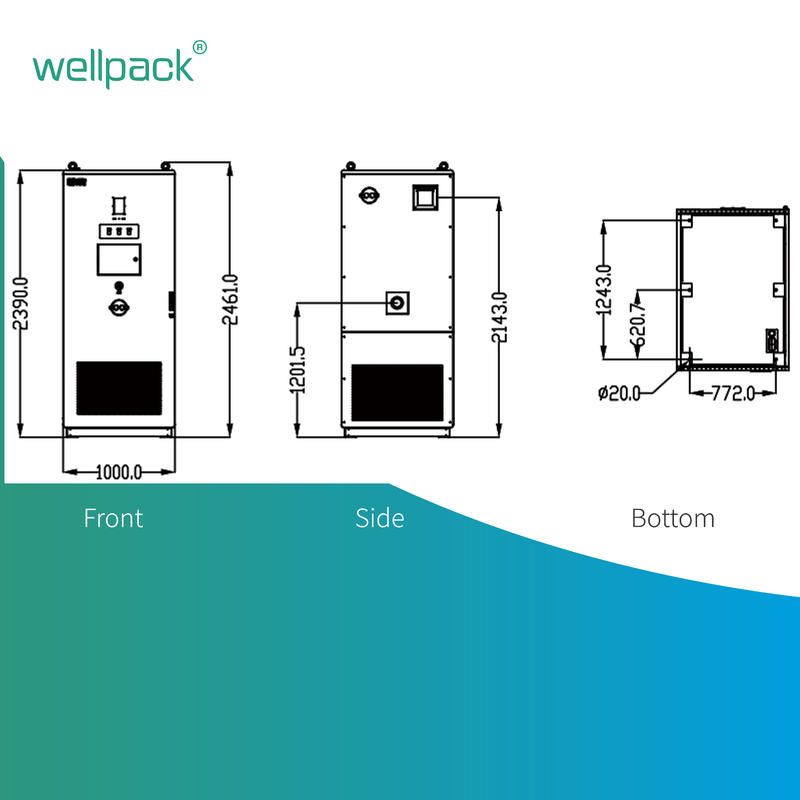

	Dimension(WDH)(mm)	100014402390(mm)
	Weight	2450kg
	IP Rating	IP54
	Working Temperature	-20 ~ 55℃
	Humidity	0~95%RH(No condensation)
	Latitude	≤3000m
	Certification	UN38.3; IEC62619; IEC61000
