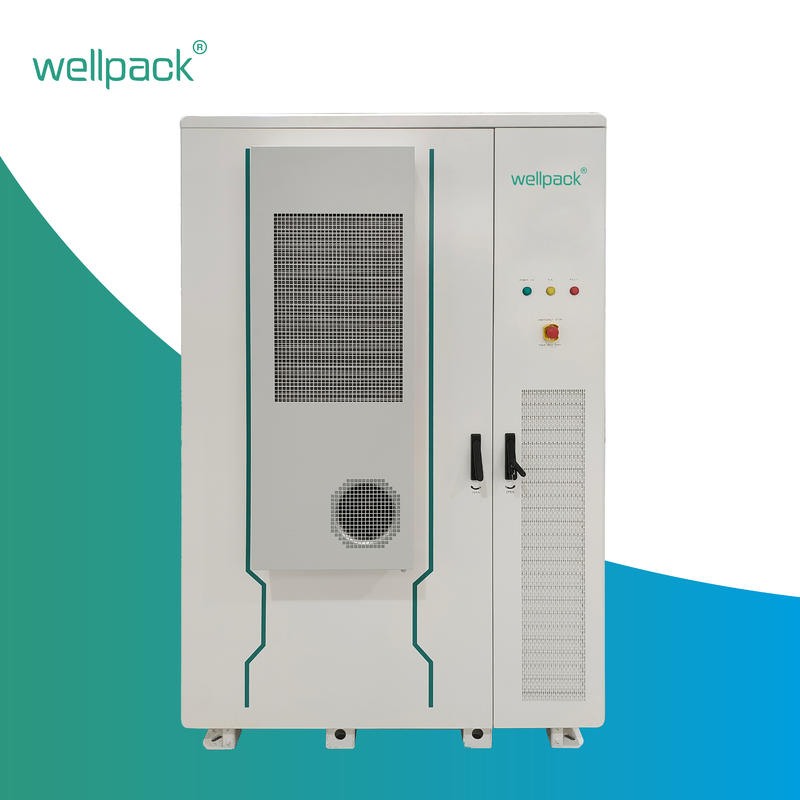

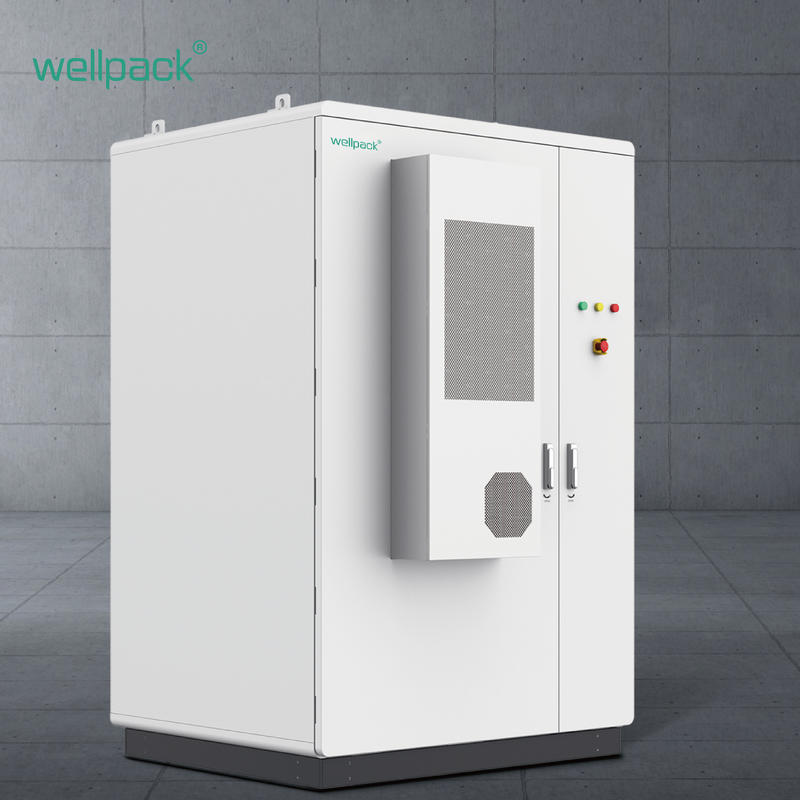

WP-EIB 100kW/215kWh Air-cooled Energy Storage Integrated Cabinet

Brand WELLPACK

Product origin China

Delivery time 15-45 days

The WP-EIB series energy storage integrated cabinets are meticulously developed by us, which is experienced in power electronics, automation, IoT, and AI technologies. The WP-EIB are on grid energy storage products designed for C&I, EV charging station, public buildings and so on. They have functions like peak shaving, peak & frequency regulation, transformer expansion, and smoothing renewable energy fluctuations, providing users with safe, reliable, economical, and efficient green electricity.

Product Features

Extreme Safety

Self-developed BMS, EMS, and cloud platform to achieve three-level electrical protection of “Pack – Cluster – Cabinet”.
Comprehensive fire detection and multiple fire protection. The entire cabinet, detected by combustible gas, smoke and temperature sensor, is equipped with perfluorohexanone fire extinguishing system.
AI data diagnosis provides early warnings based on the trend change rate of operation data.

Smart Maintenance

Providing the function of demand control, anti-backflow and transformer overload protection to make the on-grid operating safely.
Providing all-time cloud monitoring, remote configuration, and OTA to keep the system in the best condition.
Automatically generate daily/ monthly operation reports.

Intelligent & Efficient Operation

Designed with high energy density to save more space.
The annual availability rate is ≥95%, and the comprehensive cycle efficiency is ≥85%.
The cell life is up to 10 years and 6000 cycles.

Flexible Deployment

Support to be installed by hoisting and forklift, and available for side-by-side deployment.

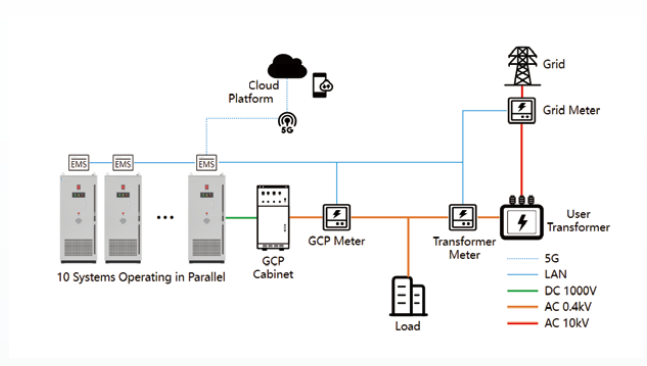

Flexible capacity expansion, up to 1MW/2.15MWh, with 10 systems operating in parallel.
Pre-installation and commissioning in the factory, plug-and-play on-site.

Product Parameters

Model	WP-EIB-V768_E215_P100-AO
Battery System	Cell Type	LFP
	Cell Parameter	3.2V/280Ah
	Cell Configuration	1P240S
	Rated Energy	215kWh
	Rated Voltage	768V
	Voltage Range	672 ~ 852V
	Rated Current	140A
	Max. Current	176A
On-grid	Rated Power	100kW
	Rated Voltage	3L/N/PE; 230/400V
	Max. Current	158A
	Frequence	50Hz
	Power Factor	0.8leading ~ 0.8lagging
System Parameters	Harmonic	<3% @ Rated Power
	Thermal Management	Air-conditioner
	Fire Supression System	Combined detector (CO/Heat/Smoke), Perfluorohexanone / Aerosol
	Communication	LAN/4G

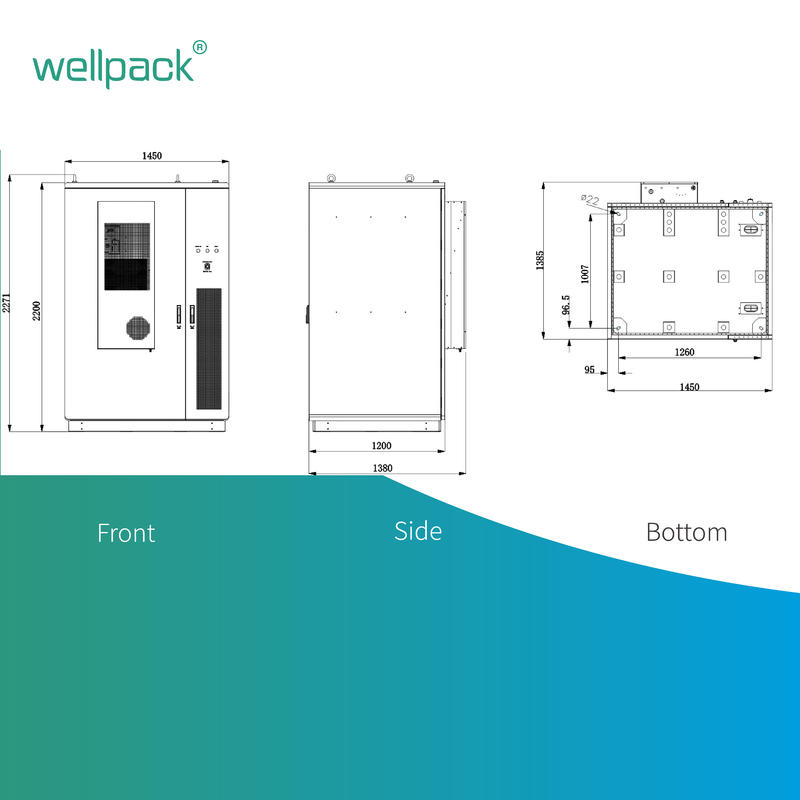

	Dimension(WDH)(mm)	145013802200(mm)
	Weight	2500kg
	IP Rating	IP54
	Working Temperature	-20 ~ 50℃
	Humidity	0~95%RH(No condensation)
	Latitude	≤3000m
	Certification	UN38.3; IEC62619; IEC61000; IEC62040
